Demo

This demo shows how to manually develop a node that exposes a single device — a signal generator with its own properties.

Alternatively, nyx-demo-c and nyx-demo-cpp respectively demonstrate how to develop a similar device in C or C++, this time using Nyx-Assistant and Nyx-Gen to graphically define the node architecture and automatically generate the code skeleton and glue.

Interface

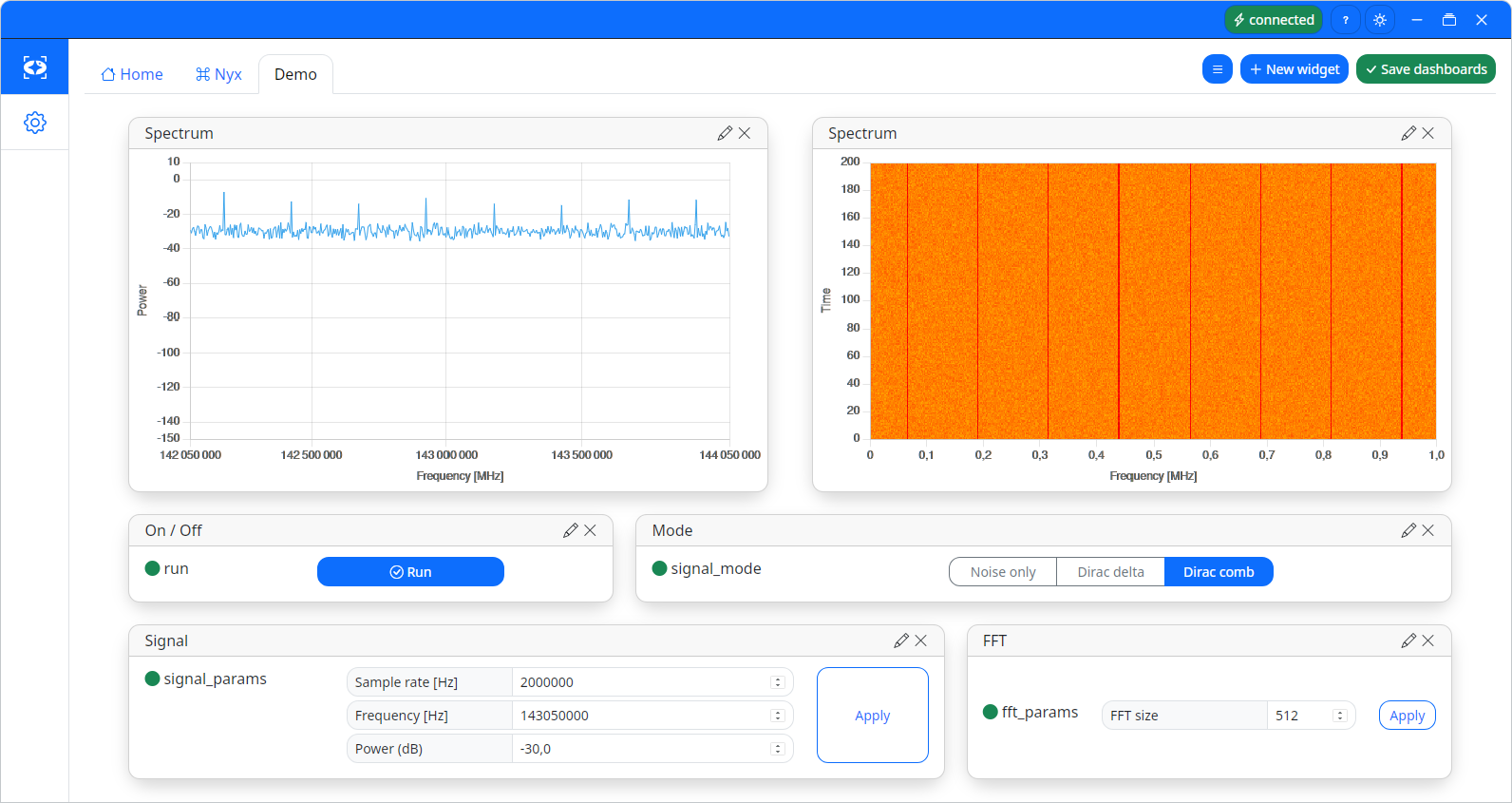

Resulting interface as displayed in Nyx-Dashboard:

Source code of the C/C++ demo

/*--------------------------------------------------------------------------------------------------------------------*/

#include <stdio.h>
#include <stdlib.h>
#include <signal.h>
#include <string.h>

#include "../src/nyx_node.h"

/*--------------------------------------------------------------------------------------------------------------------*/

static volatile sig_atomic_t s_signo = 0;

static void signal_handler(int signo)
{
    s_signo = signo;
}

/*--------------------------------------------------------------------------------------------------------------------*/

typedef enum demo_mode_e
{
    DEMO_MODE_NOISE = 0,
    DEMO_MODE_DELTA = 1,
    DEMO_MODE_COMB = 2,

} demo_mode_t;

/*--------------------------------------------------------------------------------------------------------------------*/

static nyx_onoff_t s_run = NYX_ONOFF_OFF;
static demo_mode_t s_mode = DEMO_MODE_NOISE;

static float s_samp_rate = 2000000.0f;
static float s_frequency = 143050000.0f;
static float s_power = -30.0f;

static unsigned int s_fft_size = 512U;

/*--------------------------------------------------------------------------------------------------------------------*/

static bool run_callback(__NYX_UNUSED__ nyx_dict_t *vector, __NYX_UNUSED__ nyx_dict_t *prop, int new_value, __NYX_UNUSED__ int old_value)
{
    s_run = (nyx_onoff_t) new_value;

    return true;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static bool mode_noise_callback(__NYX_UNUSED__ nyx_dict_t *vector, __NYX_UNUSED__ nyx_dict_t *prop, __NYX_UNUSED__ int new_value, __NYX_UNUSED__ int old_value)
{
    if(new_value == NYX_ONOFF_ON)
    {
        s_mode = DEMO_MODE_NOISE;
    }

    return true;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static bool mode_delta_callback(__NYX_UNUSED__ nyx_dict_t *vector, __NYX_UNUSED__ nyx_dict_t *prop, __NYX_UNUSED__ int new_value, __NYX_UNUSED__ int old_value)
{
    if(new_value == NYX_ONOFF_ON)
    {
        s_mode = DEMO_MODE_DELTA;
    }

    return true;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static bool mode_comb_callback(__NYX_UNUSED__ nyx_dict_t *vector, __NYX_UNUSED__ nyx_dict_t *prop, __NYX_UNUSED__ int new_value, __NYX_UNUSED__ int old_value)
{
    if(new_value == NYX_ONOFF_ON)
    {
        s_mode = DEMO_MODE_COMB;
    }

    return true;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static bool samp_rate_callback(__NYX_UNUSED__ nyx_dict_t *vector, __NYX_UNUSED__ nyx_dict_t *prop, double new_value, __NYX_UNUSED__ double old_value)
{
    s_samp_rate = (float) new_value;

    return true;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static bool frequency_callback(__NYX_UNUSED__ nyx_dict_t *vector, __NYX_UNUSED__ nyx_dict_t *prop, double new_value, __NYX_UNUSED__ double old_value)
{
    s_frequency = (float) new_value;

    return true;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static bool power_callback(__NYX_UNUSED__ nyx_dict_t *vector, __NYX_UNUSED__ nyx_dict_t *prop, double new_value, __NYX_UNUSED__ double old_value)
{
    s_power = (float) new_value;

    return true;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static bool fftsize_callback(__NYX_UNUSED__ nyx_dict_t *vector, __NYX_UNUSED__ nyx_dict_t *prop, unsigned int new_value, __NYX_UNUSED__ unsigned int old_value)
{
    s_fft_size = new_value;

    return true;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static nyx_dict_t *stream_vector = NULL;

/*--------------------------------------------------------------------------------------------------------------------*/

static void gen_noise(float *dst, size_t n, float mean_db)
{
    for(size_t i = 0; i < n; i++)
    {
        float u = (float) rand() / (float) RAND_MAX; // NOLINT(*-msc50-cpp)
        float v = (float) rand() / (float) RAND_MAX; // NOLINT(*-msc50-cpp)

        float w = (u + v - 1.0f) * 6.0f;

        dst[i] = mean_db + w;
    }
}

/*--------------------------------------------------------------------------------------------------------------------*/

static void gen_delta(float *dst, size_t n, float mean_db)
{
    gen_noise(dst, n, mean_db);

    dst[n / 2U] += 20.0f;
}

/*--------------------------------------------------------------------------------------------------------------------*/

static void gen_comb(float *dst, size_t n, float mean_db)
{
    gen_noise(dst, n, mean_db);

    size_t step = n / 8u;

    for(size_t i = step / 2u; i < n; i += step)
    {
        dst[i] += 20.0f;
    }
}

/*--------------------------------------------------------------------------------------------------------------------*/

static void timer_stream(__NYX_UNUSED__ void *arg)
{
    if(s_run != NYX_ONOFF_ON)
    {
        return;
    }

    /*----------------------------------------------------------------------------------------------------------------*/

    static float spectrum[4096];

    const size_t n = (s_fft_size <= 4096U) ? (size_t) s_fft_size
                                           : (size_t) 4096U
    ;

    switch(s_mode)
    {
        case DEMO_MODE_NOISE: gen_noise(spectrum, n, s_power); break;
        case DEMO_MODE_DELTA: gen_delta(spectrum, n, s_power); break;
        default:              gen_comb(spectrum, n, s_power); break;
    }

    /*----------------------------------------------------------------------------------------------------------------*/

    size_t sizes[] = {sizeof(s_samp_rate), sizeof(s_frequency), n * sizeof(float)};
    BUFF_t buffs[] = {&s_samp_rate       , &s_frequency       , spectrum         };

    nyx_stream_pub(stream_vector, 3, sizes, buffs);

    /*----------------------------------------------------------------------------------------------------------------*/
}

/*--------------------------------------------------------------------------------------------------------------------*/

static void mqtt_callback(
    nyx_node_t *node,
    nyx_event_type_t event_type,
    size_t topic_size,
    BUFF_t topic_buff,
    __NYX_UNUSED__ size_t message_size,
    __NYX_UNUSED__ BUFF_t message_buff
) {
    /**/ if(event_type == NYX_NODE_EVENT_OPEN)
    {
        nyx_mqtt_sub(node, "demo/exit", 0);
    }
    else if(event_type == NYX_NODE_EVENT_MSG)
    {
        if(topic_size == 9 && memcmp(topic_buff, "demo/exit", 9) == 0)
        {
            s_signo = 1;
        }
    }
}

/*--------------------------------------------------------------------------------------------------------------------*/

int main()
{
    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_set_log_level(NYX_LOG_LEVEL_DEBUG);

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_memory_initialize();

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_opts_t opt = {
        .group = "Demo"
    };

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_dict_t *run_prop = nyx_switch_prop_new("run", "Run", NYX_ONOFF_OFF);

    run_prop->base.callback._int = run_callback;

    nyx_dict_t *run_props[] = {run_prop, NULL};

    nyx_dict_t *run_vector = nyx_switch_vector_new(
        "Demo",
        "run",
        NYX_STATE_OK,
        NYX_PERM_RW,
        NYX_RULE_AT_MOST_ONE,
        run_props,
        &opt
    );

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_dict_t *mode_noise_prop = nyx_switch_prop_new("mode_noise", "Noise only", NYX_ONOFF_ON);
    nyx_dict_t *mode_delta_prop = nyx_switch_prop_new("mode_delta", "Dirac delta", NYX_ONOFF_OFF);
    nyx_dict_t *mode_comb_prop = nyx_switch_prop_new("mode_comb", "Dirac comb", NYX_ONOFF_OFF);

    mode_noise_prop->base.callback._int = mode_noise_callback;
    mode_delta_prop->base.callback._int = mode_delta_callback;
    mode_comb_prop->base.callback._int = mode_comb_callback;

    nyx_dict_t *mode_props[] = {mode_noise_prop, mode_delta_prop, mode_comb_prop, NULL};

    nyx_dict_t *mode_vector = nyx_switch_vector_new(
        "Demo",
        "signal_mode",
        NYX_STATE_OK,
        NYX_PERM_RW,
        NYX_RULE_ONE_OF_MANY,
        mode_props,
        &opt
    );

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_dict_t *samp_rate_prop = nyx_number_prop_new_double("samp_rate", "Sample rate [Hz]", "%.0f", 1000.0, 50000000.0, 1000.0, s_samp_rate);
    nyx_dict_t *frequency_prop = nyx_number_prop_new_double("frequency", "Frequency [Hz]", "%.0f", 1000000.0, 2000000000.0, 1000.0, s_frequency);
    nyx_dict_t *power_prop = nyx_number_prop_new_double("power", "Power (dB)", "%.1f", -150.0, 20.0, 1.0, s_power);

    samp_rate_prop->base.callback._double = samp_rate_callback;
    frequency_prop->base.callback._double = frequency_callback;
    power_prop->base.callback._double = power_callback;

    nyx_dict_t *signal_props[] = {samp_rate_prop, frequency_prop, power_prop, NULL};

    nyx_dict_t *signal_vector = nyx_number_vector_new(
        "Demo",
        "signal_params",
        NYX_STATE_OK,
        NYX_PERM_RW,
        signal_props,
        &opt
    );

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_dict_t *fft_size_prop = nyx_number_prop_new_uint("fft_size", "FFT size", "%u", 1U, 4096U, 1U, s_fft_size);

    fft_size_prop->base.callback._uint = fftsize_callback;

    nyx_dict_t *fft_props[] = {fft_size_prop, NULL};

    nyx_dict_t *fft_vector = nyx_number_vector_new(
        "Demo",
        "fft_params",
        NYX_STATE_OK,
        NYX_PERM_RW,
        fft_props,
        &opt
    );

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_dict_t *stream_samp_rate_prop = nyx_stream_prop_new("samp_rate", "Sample rate [Hz]");
    nyx_dict_t *stream_frequency_prop = nyx_stream_prop_new("frequency", "Frequency [Hz]");
    nyx_dict_t *stream_samples_prop = nyx_stream_prop_new("samples", "Samples");

    nyx_dict_t *spectrum_props[] = {
        stream_samp_rate_prop,
        stream_frequency_prop,
        stream_samples_prop,
        NULL,
    };

    stream_vector = nyx_stream_vector_new(
        "Demo",
        "spectrum",
        NYX_STATE_OK,
        spectrum_props,
        &opt
    );

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_dict_t *vector_list[] = {
        run_vector,
        mode_vector,
        signal_vector,
        fft_vector,
        stream_vector,
        NULL,
    };

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_node_t *node = nyx_node_initialize(
        "NYX_DEMO",
        vector_list,
        "tcp://0.0.0.0:7625",
        getenv("MQTT_URL"),
        getenv("STREAM_URL"),
        getenv("MQTT_USERNAME"),
        getenv("MQTT_PASSWORD"),
        mqtt_callback,
        3000,
        true
    );

    /*----------------------------------------------------------------------------------------------------------------*/

    signal(SIGINT, signal_handler);
    signal(SIGTERM, signal_handler);

    nyx_node_add_timer(node, 50, timer_stream, NULL);

    while(s_signo == 0)
    {
        nyx_node_poll(node, 25);
    }

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_node_finalize(node, true);

    /*----------------------------------------------------------------------------------------------------------------*/

    nyx_memory_finalize();

    /*----------------------------------------------------------------------------------------------------------------*/

    printf("Bye.\n");

    return 0;
}

/*--------------------------------------------------------------------------------------------------------------------*/

Source code of the Python demo

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
########################################################################################################################
# NyxNode
# Author: Jérôme ODIER <jerome.odier@lpsc.in2p3.fr>
# SPDX-License-Identifier: GPL-3.0+
########################################################################################################################

import os
import sys
import random
import signal
import struct

# noinspection PyTypeChecker
sys.path.append(os.path.abspath(os.path.join(os.path.dirname(__file__), '..')))

import nyx

########################################################################################################################

def main():

    ####################################################################################################################

    MODE_NOISE = 0
    MODE_DELTA = 1
    MODE_COMB  = 2

    ####################################################################################################################

    run = nyx.NyxOnOff.OFF
    mode = MODE_NOISE

    samp_rate = 2000000.0
    frequency = 143050000.0
    power = -30.0

    fft_size = 512

    stop = False

    ####################################################################################################################

    def gen_noise(n: int, mean_db: float) -> list[float]:

        return [mean_db + (random.random() + random.random() - 1.0) * 6.0 for _ in range(n)]

    ####################################################################################################################

    def gen_delta(n: int, mean_db: float) -> list[float]:

        spectrum = gen_noise(n, mean_db)

        spectrum[n // 2] += 20.0

        return spectrum

    ####################################################################################################################

    def gen_comb(n: int, mean_db: float) -> list[float]:

        spectrum = gen_noise(n, mean_db)

        step = max(n // 8, 1)

        for index in range(step // 2, n, step):

            spectrum[index] += 20.0

        return spectrum

    ####################################################################################################################

    def get_spectrum() -> list[float]:

        n = min(fft_size, 4096)

        if mode == MODE_NOISE:

            return gen_noise(n, power)

        if mode == MODE_DELTA:

            return gen_delta(n, power)

        return gen_comb(n, power)

    ####################################################################################################################

    nyx.nyx_set_log_level(nyx.NyxLogLevel.DEBUG)

    ####################################################################################################################

    run_prop = nyx.NyxSwitchProp(
        'run',
        'Run',
        nyx.NyxOnOff.OFF,
    )

    @run_prop.on
    def on_run_changed(new_value, _old_value):

        nonlocal run

        run = new_value

        return True

    ####################################################################################################################

    run_vector = nyx.NyxSwitchVector(
        'Demo',
        'run',
        nyx.NyxState.OK,
        nyx.NyxPerm.RW,
        nyx.NyxRule.AT_MOST_ONE,
        [run_prop],
        group = 'Demo',
    )

    ####################################################################################################################

    mode_noise_prop = nyx.NyxSwitchProp(
        'mode_noise',
        'Noise only',
        nyx.NyxOnOff.ON,
    )

    @mode_noise_prop.on
    def on_mode_noise_changed(new_value, _old_value):

        nonlocal mode

        if new_value == nyx.NyxOnOff.ON:

            mode = MODE_NOISE

        return True

    ####################################################################################################################

    mode_delta_prop = nyx.NyxSwitchProp(
        'mode_delta',
        'Dirac delta',
        nyx.NyxOnOff.OFF,
    )

    @mode_delta_prop.on
    def on_mode_delta_changed(new_value, _old_value):

        nonlocal mode

        if new_value == nyx.NyxOnOff.ON:

            mode = MODE_DELTA

        return True

    ####################################################################################################################

    mode_comb_prop = nyx.NyxSwitchProp(
        'mode_comb',
        'Dirac comb',
        nyx.NyxOnOff.OFF,
    )

    @mode_comb_prop.on
    def on_mode_comb_changed(new_value, _old_value):

        nonlocal mode

        if new_value == nyx.NyxOnOff.ON:

            mode = MODE_COMB

        return True

    ####################################################################################################################

    mode_vector = nyx.NyxSwitchVector(
        'Demo',
        'signal_mode',
        nyx.NyxState.OK,
        nyx.NyxPerm.RW,
        nyx.NyxRule.ONE_OF_MANY,
        [
            mode_noise_prop,
            mode_delta_prop,
            mode_comb_prop,
        ],
        group = 'Demo',
    )

    ####################################################################################################################

    samp_rate_prop = nyx.NyxNumberDoubleProp(
        'samp_rate',
        'Sample rate [Hz]',
        '%.0f',
        1000.0,
        50000000.0,
        1000.0,
        samp_rate,
    )

    @samp_rate_prop.on
    def on_samp_rate_changed(new_value, _old_value):

        nonlocal samp_rate

        samp_rate = new_value

        return True

    ####################################################################################################################

    frequency_prop = nyx.NyxNumberDoubleProp(
        'frequency',
        'Frequency [Hz]',
        '%.0f',
        1000000.0,
        2000000000.0,
        1000.0,
        frequency,
    )

    @frequency_prop.on
    def on_frequency_changed(new_value, _old_value):

        nonlocal frequency

        frequency = new_value

        return True

    ####################################################################################################################

    power_prop = nyx.NyxNumberDoubleProp(
        'power',
        'Power (dB)',
        '%.1f',
        -150.0,
        20.0,
        1.0,
        power,
    )

    @power_prop.on
    def on_power_changed(new_value, _old_value):

        nonlocal power

        power = new_value

        return True

    ####################################################################################################################

    signal_vector = nyx.NyxNumberVector(
        'Demo',
        'signal_params',
        nyx.NyxState.OK,
        nyx.NyxPerm.RW,
        [
            samp_rate_prop,
            frequency_prop,
            power_prop,
        ],
        group = 'Demo',
    )

    ####################################################################################################################

    fft_size_prop = nyx.NyxNumberUIntProp(
        'fft_size',
        'FFT size',
        '%u',
        1,
        4096,
        1,
        fft_size,
    )

    @fft_size_prop.on
    def on_fft_size_changed(new_value, _old_value):

        nonlocal fft_size

        fft_size = new_value

        return True

    ####################################################################################################################

    fft_vector = nyx.NyxNumberVector(
        'Demo',
        'fft_params',
        nyx.NyxState.OK,
        nyx.NyxPerm.RW,
        [fft_size_prop],
        group = 'Demo',
    )

    ####################################################################################################################

    stream_samp_rate_prop = nyx.NyxStreamProp(
        'samp_rate',
        'Sample rate [Hz]',
    )

    stream_frequency_prop = nyx.NyxStreamProp(
        'frequency',
        'Frequency [Hz]',
    )

    stream_samples_prop = nyx.NyxStreamProp(
        'samples',
        'Samples',
    )

    stream_vector = nyx.NyxStreamVector(
        'Demo',
        'spectrum',
        nyx.NyxState.OK,
        [
            stream_samp_rate_prop,
            stream_frequency_prop,
            stream_samples_prop,
        ],
        group = 'Demo',
    )

    ####################################################################################################################

    with nyx.NyxNode(
        'NYX_DEMO_PY',
        [
            mode_vector,
            run_vector,
            signal_vector,
            fft_vector,
            stream_vector,
        ],
        'tcp://0.0.0.0:7625',
        os.getenv('MQTT_URL'),
        os.getenv('STREAM_URL'),
        os.getenv('MQTT_USERNAME'),
        os.getenv('MQTT_PASSWORD'),
        3000,
        True
    ) as node:

        ################################################################################################################

        @node.on_timer(50)
        def on_timer():

            if run == nyx.NyxOnOff.ON:

                spectrum = get_spectrum()

                stream_vector.stream_pub([
                    struct.pack('=f', samp_rate),
                    struct.pack('=f', frequency),
                    struct.pack(f'={len(spectrum)}f', *spectrum),
                ])

        ################################################################################################################

        @node.on_mqtt(nyx.NyxMQTTEvent.OPEN)
        def on_mqtt_open():

            node.mqtt_sub('demo/exit')

        ################################################################################################################

        @node.on_mqtt(nyx.NyxMQTTEvent.MSG)
        def on_mqtt_msg(topic, _message):

            nonlocal stop

            if topic == 'demo/exit':

                stop = True

        ####################################################################################################################

        stop = False

        def signal_handler(_signo, _frame):

            nonlocal stop

            stop = True

        ################################################################################################################

        signal.signal(signal.SIGINT, signal_handler)

        ################################################################################################################

        while not stop:

            node.poll(25)

    ####################################################################################################################

    print('Bye.')

    return 0

########################################################################################################################

if __name__ == '__main__':

    sys.exit(main())

########################################################################################################################
